InGaAs APD & Pin photodiode
InGaAs pin photodiode
Item No.: 191

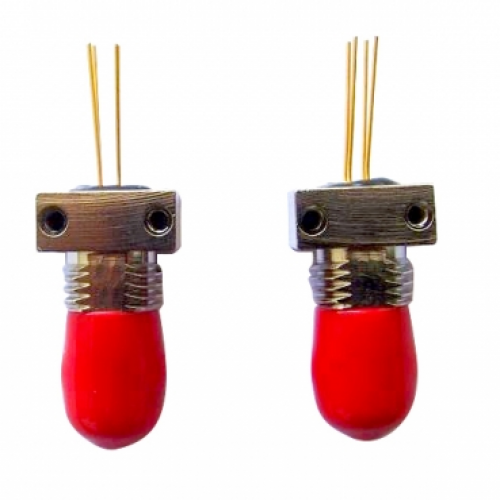

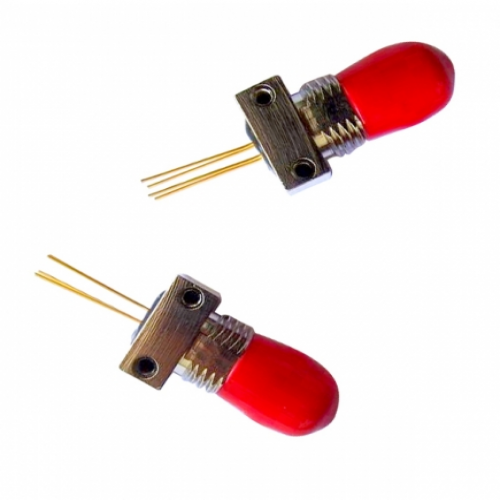

InGaAs pin photodiode SM single mode ,InGaAs PDinput&output:no connector
Description
InGaAs pin photodiode
Features
- InGaAs PIN photodiode,Low dark current
- Compact package,Low insertion loss
Application
- FTTH,Communications systems.
- Optical fiber sensors,Optical test instrumentation.
AbsoluteMaximumratings
RecommendedOperatingConditions
OpticalandElectricalCharacteristics(Tc=25℃)
PinDescriptionandPackageDimensions：（mm）
Supply Ability
100000 PCS/Month more or less
Packaging Details
- Pack in carton
- Compact package,Low insertion loss
Application
- FTTH,Communications systems.
- Optical fiber sensors,Optical test instrumentation.
AbsoluteMaximumratings
| Parameter | Symbol | Min | Max | Unit |
| Forwardcurrent | If | — | 10 | mA |
| Reversevoltage | Vr | — | 20 | V |
| Operatingtemperature | Top | －5 | +70 | ℃ |
| Storagetemperature | Tstg | －40 | +85 | ℃ |
| SolderTemperature | TS | — | 260 | ℃ |
| Solderingtime | — | — | 10 | s |
RecommendedOperatingConditions
| Parameter | Symbol | Min | Type | Max | Unit |
| CaseOperatingTemperatureRange | Tc | －5 | +25 | +70 | ℃ |
| Operatingvoltage | Vcc | -24 | -5 | — | V |
OpticalandElectricalCharacteristics(Tc=25℃)
| Parameter | Unit | Value |
| Operatingwavelength | nm | 1260-1650 |
| Tapratio | % | 2 |
| Responsivity | A/W | Min：0.016Max：0.024 |
| ReflectionInsertionloss | dB | Max：0.6 |
| PDDarkCurrent（Vr=5V） | nA | ≤1 |
| Returnloss | dB | ≥45 |
| PDL | dB | ≤0.1 |
| Insertionlossthermalstability | dB/℃ | ≤0.005 |
| InputPowerRange | mW | Max：200 |
| 尺寸Dimensions | mm | Φ4.0 |
| Fibretype | SMF-28e(9/125umΦ0.25mmbarefiber) | |
| ESD | V | 200 |
