BOSA

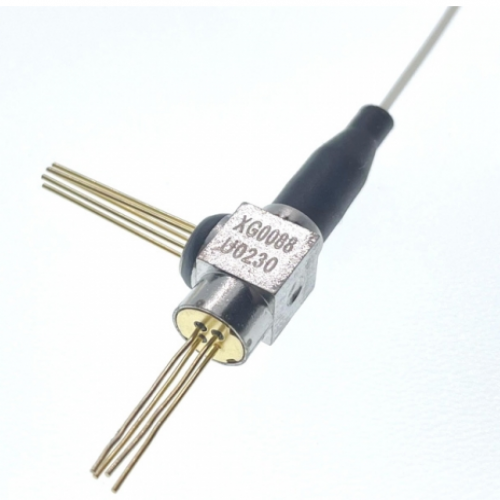

XGSPON 10G ONU BOSA
Item No.: 180
- 9.95Gbps/10.3125Gbps Tx 1270nm DFB LD/Rx 1577nm integrated WDM filter Pigtail 5 Pin BOSA - The Case is isolator with the GND PIN of APD-TIA - Compliant the with ROHS (Restriction on Hazardous Substance) standard - Compliant the MIL-STD-883E
Description
FEATURES
- DFB uncooled laser diode
- High sensitive APD-TIA
- SC/APC Pigtail
- Support Industrial temperature
DESCRIPTION
- 9.95Gbps/10.3125Gbps Tx 1270nm DFB LD/Rx 1577nm integrated WDM filter Pigtail 5 Pin BOSA
- The Case is isolator with the GND PIN of APD-TIA
- Compliant the with ROHS (Restriction on Hazardous Substance) standard
- Compliant the MIL-STD-883E
ABSOLUTE MAXIMUM RATINGS(Tc=0-85°C unless otherwise noted)
| Parameter | Symbol | Min. | Max. | Unit |
| Storage Temperature | Tstg | -40 | 85 | ℃ |
| Operating Case Temperature | Top | 0 | 85 | ℃ |
| Reverse Voltage(LD) | VRL | 2 | V | |
| Reverse Voltage(MPD) | VRD | 15 | V | |
| Photodiode Forward Current(MPD) | IFD | 10 | mA | |
| Forward Current(LD) | IFL | 150 | mA | |
| Lead Soldering (Temperature)/(Time) | 260/10 | ℃/Sec |
Transmitter Optical And Electrical Characteristics
(Unless specified else，the specifications below are defined at TC=0-85℃ )
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note | |
| Output Optical Power | Pf | 2.8 | 5.0 | mW | CW, Iop= Ith+20mA | ||
| Threshold Current | Ith | 8 | 15 | mA | CW,Tc=25℃ | ||
| 45 | mA | CW, Tc=0~85℃ | |||||
| Center Wavelength | λc | 1260 | 1270 | 1280 | nm | CW, Iop=Ith+20mA Tc=0~85℃ | |
| Side Mode Suppression Ratio | SMSR △ | 35 | dB | CW, Pop=Ith+20mA | |||
| Spectrum Width (-20dB) | λ | 1.0 | nm | CW, Pop=Ith+20mA | |||
| Operating Voltage | Vop | 1.2 | 1.7 | V | CW, Iop=Ith+20mA | ||
| Monitor Current | Imon | 0.1 | 1.0 | mA | DC, Iop=Ith+20mA, | ||
| Rise/Fall time | Tr/Tf | 50 | ps | 20%-80% | |||
| Monitor Dark Current | Id | 100 | nA | Vrd=5V | |||
| PD Capacitance | Ct | 5 | 7 | pF | Vrd=5V@1MHz | ||
| Tracking Error | TE | -1.5 | 1.5 | dB | APC, 0℃/+25℃, +25℃/+85℃ | ||
Receiver Optical and Electrical Characteristics
(Unless specified else，the specifications below are defined at TC=0-85℃ )
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition |
| Operating Wavelength | λ | 1575 | 1577 | 1580 | nm | |
| Supply Voltage | Vcc | 3.0 | 3.3 | 3.6 | V | |
| TIA Supply Current | Icc | 27 | 45 | mA | Vcc=3.3V | |
| Sensitivity | Sen | -30 | dBm | λ=1577nm , 9.95Gbps/10.3125Gbps PRBS=2^31-1, ER≥6dB,BER≤10-3, Vbr-3V，CW | ||
| Breakdown voltage | Vbr | 25 | 33 | 45 | V | I=10uA |
| Overload Power | Pol | -7 | dBm | λ=1577nm , 9.95Gbps/10.3125Gbps PRBS=2^31-1, ER≥6dB,BER≤10-3, Vbr-3V，CW | ||
| Optical Return Loss | ORL | -20 | dB | λ=1577nm | ||
| Optical Crosstalk From Internal Laser | Xopt | -40 | dB | 1270nm/1570nm | ||
| Dark Current | ld | 100 | nA | TC =25℃ | ||
| Rx filter specification@1260~1560nm | Isolation | 35 | dB | 1260~1560nm | ||
| Rx filter specification@1595~1660nm | Isolation | 35 | dB | 1595~1660nm | ||
| Rx filter specification@1575~1580nm | Isolation | 0.35 | dB | 1575~1580nm |
Structure Note: mm. tolerance ±0.05mm
