BOSA

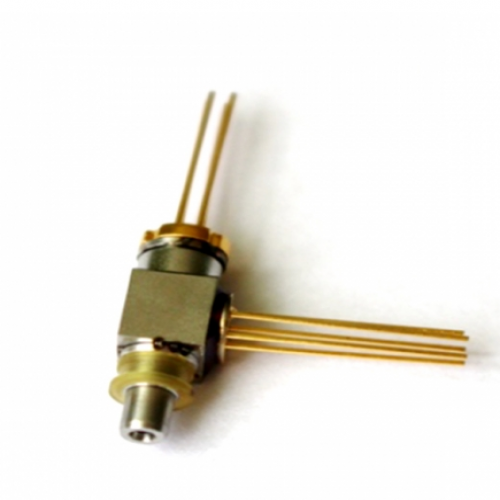

CSFP+ mini BOSA Digital DFB 10G Mini BOSA
Item No.: 158
The product is a point-to-point BOSA component with an upstream 1310/1270nm wavelength/operating rate of 10.3125Gb/s and a downstream 1270/1330nm/operating rate of 10.3125Gb/s.
Description
Product details
Model Number:DFB 10G Mini BOSA
Type:BOSA
Package Type:Receptacle
Description
- The product is a point-to-point BOSA component with an upstream 1310/1270nm wavelength/operating rate of 10.3125Gb/s and a downstream 1270/1330nm/operating rate of 10.3125Gb/s.
- The starter uses a DFB laser and the receiving end uses a PIN-TIA diode.
- Chip information:
LD: 1270nm/1330nm 10.3125Gpbs DFB 4PIN
PT: 10.3125Gpbs PIN-TIA
- Product structure remarks: LC/PC ferrule assembly, machining/powder structure, receiving end adhesive structure, with isolator.
Type:BOSA
Package Type:Receptacle
Description
- The product is a point-to-point BOSA component with an upstream 1310/1270nm wavelength/operating rate of 10.3125Gb/s and a downstream 1270/1330nm/operating rate of 10.3125Gb/s.
- The starter uses a DFB laser and the receiving end uses a PIN-TIA diode.
- Chip information:
LD: 1270nm/1330nm 10.3125Gpbs DFB 4PIN
PT: 10.3125Gpbs PIN-TIA
- Product structure remarks: LC/PC ferrule assembly, machining/powder structure, receiving end adhesive structure, with isolator.
Specification
| Parameter | Rating |
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 15V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 120mA |
| Wavelength | Up1310/1270nm Down1270/1330nm |
| Connector | SC FC ST |
Features
- Laser welding solution
- Point-to-point application
- Uplink and downlink rates are 10.3125G
- High optical isolation
- Working temperature: -40 ° C ~ 85 ° C
- Plug-in LC BOSA
Standard
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Application
- Remote communication
- Point-to-point communication
Supply Ability
50K PCS/Month
Packaging Details
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
- Laser welding solution
- Point-to-point application
- Uplink and downlink rates are 10.3125G
- High optical isolation
- Working temperature: -40 ° C ~ 85 ° C
- Plug-in LC BOSA
Standard
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Application
- Remote communication
- Point-to-point communication
Supply Ability
50K PCS/Month
Packaging Details
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
